deadmesh does one thing: it makes a Meshtastic LoRa mesh look like a normal
internet connection to any application that uses it. No special clients, no
modified apps, no mesh-aware software required.

Here's how that actually works.

Architecture

┌─────────────┐                  ┌──────────────┐                ┌──────────┐
│ Mesh Client │  LoRa Packets    │   deadmesh   │  TCP/IP        │ Internet │
│  (Phone /   ├─────────────────>│   Gateway    ├───────────────>│ Services │
│  Handheld)  │  (868/915 MHz)   │              │                │          │
│             │                  │ - Fragment   │                │  HTTP    │
│ Meshtastic  │                  │ - Reassemble │                │  SMTP    │
│    App      │<─────────────────┤ - TLS Proxy  │<───────────────┤  IMAP    │
└─────────────┘                  │ - Cache      │                └──────────┘
                                 │ - Compress   │
                                 └──────┬───────┘
                                        │
                                 ┌──────┴───────┐
                                 │  Serial API   │
                                 │  0x94 0xC3    │
                                 │  protobuf     │
                                 │  want_config  │
                                 └──────┬───────┘
                                        │ USB
                                 ┌──────┴───────┐
                                 │  Meshtastic   │
                                 │  Radio        │
                                 └──────────────┘

The gateway node sits at the boundary between two worlds. On the mesh side it
speaks Meshtastic natively. On the internet side it speaks whatever protocol
the client application is already using. Neither side needs to know anything
about the other.

Startup Sequence

When deadmesh starts, it doesn't just open a serial port and start listening.
It performs a proper handshake with the radio:

1. Open serial port (/dev/ttyACM0) at 115200 baud
2. Send want_config handshake (ToRadio protobuf)
3. Receive MyNodeInfo → auto-detect local node ID
4. Receive device config, module config, channel config
5. Receive NodeInfo for all known mesh nodes → populate node table
6. Begin receiving live mesh packets (position, telemetry, text, etc.)
7. Filter for custom portnum (100) for proxy session traffic
8. All other packets update node table (hops, SNR, battery, position)

Step 3 is worth noting, deadmesh auto-detects its own node ID from the device
rather than requiring manual configuration. Every packet from every node on the
mesh continues to update the node table in real time throughout the session.

Serial Framing

Meshtastic uses a length-prefixed binary protocol over serial. Every packet
follows this structure:

┌────────┬────────┬───────────┬───────────┬─────────────────┐
│ 0x94   │ 0xC3   │ len_hi    │ len_lo    │ protobuf payload│
│ magic0 │ magic1 │ (MSB)     │ (LSB)     │ (FromRadio/     │
│        │        │           │           │  ToRadio)       │
└────────┴────────┴───────────┴───────────┴─────────────────┘

The framing layer handles sync recovery automatically. Magic bytes can be lost mid-stream on noisy serial connections, if that happens the state machine re-synchronizes without dropping the session.

Protocol Detection

deadmesh identifies incoming protocols by inspecting the first few bytes of
each connection. No configuration, no port mapping, no per-protocol setup:

This is what makes deadmesh transparent to applications. Your email client
sends EHLO, deadmesh recognizes it and routes accordingly. Your browser sends
CONNECT, deadmesh handles the TLS handshake. The application never knows
it's talking through LoRa.

Packet Flow

The fundamental problem deadmesh solves is the mismatch between what internet
protocols expect (reliable, fast, large packets) and what LoRa provides
(slow, duty-cycle-limited, ~220 byte payloads).

Outbound (client → internet):

HTTP GET request (1500 bytes)
└─> Split into 7 LoRa packets (~220 bytes each)
└─> Each tagged with sequence number + session ID
└─> Sent hop-by-hop through mesh to gateway on portnum 100
└─> Gateway reassembles → proxies to internet

Inbound (internet → client):

HTTP response (50KB HTML)
└─> Compressed if plugin.compressor enabled (~5-10KB)
└─> Cached if cacheable (saves future airtime)
└─> Fragmented into LoRa packets with flow control
└─> Client reassembles → delivers to application

Compression before fragmentation is significant → a 50KB HTML response
compressed to 5KB requires 23 LoRa packets instead of 228. Over a network
where EU duty cycle regulations cap airtime at 1%, that difference is the
gap between working and not working.

The Node Table

Every packet deadmesh receives every position update, telemetry report, and text message on the mesh and updates a persistent in-memory node table. Fields are populated from whatever source provides them:

• NodeInfo (startup dump): short name, long name, position, SNR, last heard
• Any packet header: hops away, SNR, last heard timestamp
• POSITION_APP: latitude, longitude, altitude
• TELEMETRY_APP: battery level

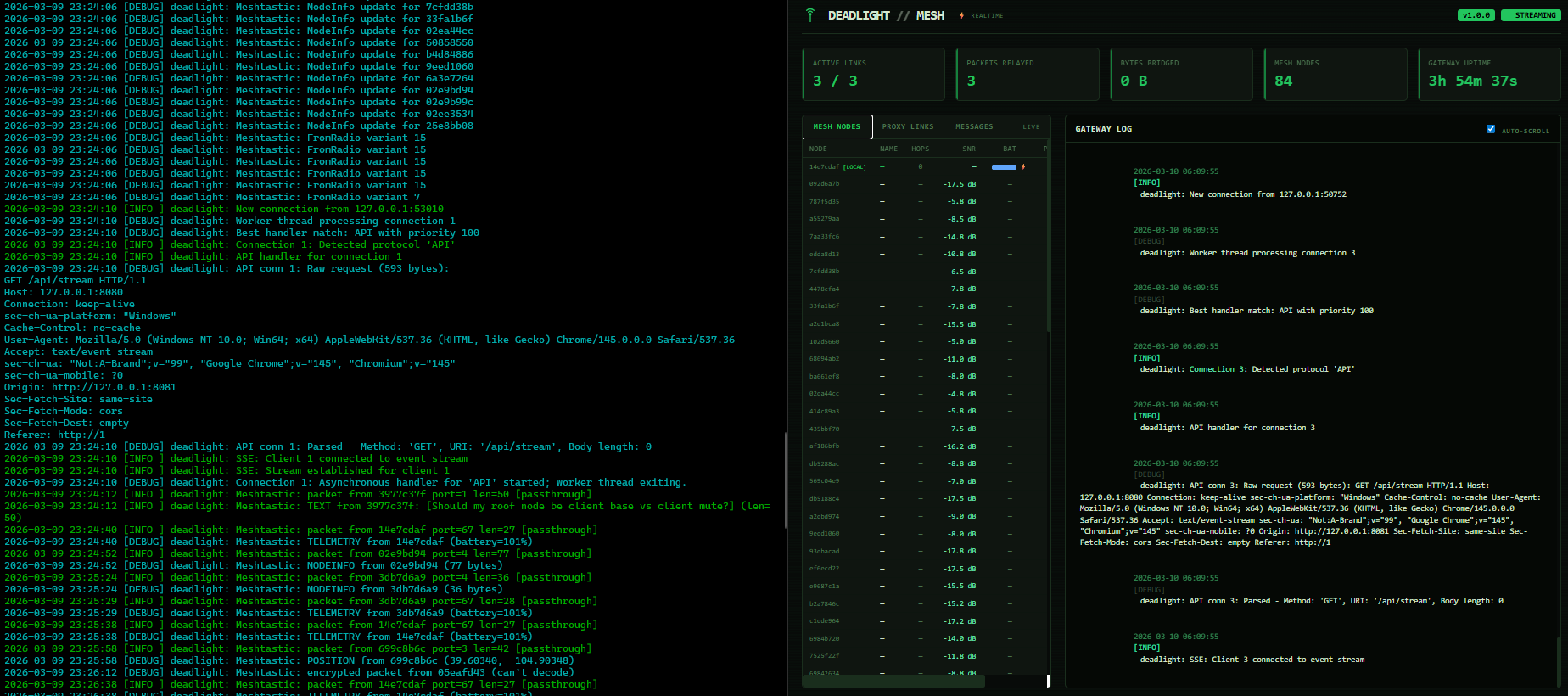

This is what powers the live dashboard: 95+ nodes visible, updating in real
time from ambient mesh traffic, with no dedicated polling or extra airtime cost.

What's Next

The proxy is verified working. The serial API is active. The dashboard is live.

The next milestone is end-to-end proxy sessions over actual LoRa air —
synthetic testing with mesh-sim is solid, real over-the-air sessions are
next. After that: the mesh:// scheme, adaptive fragmentation, and a node
topology map that visualizes the mesh graph from hop data.

The technical foundation is done. What's coming next is where it gets
genuinely interesting.
